Fibroplast Formwork System

FIBROPLAST FORMWORK SYSTEM

Watermark 1.png
Watermark 3 (1).png

MODIFIED PLASTIC FORMWORK

MODULAR, STANDARD, EASY FORMWORK SYSTEM

Adjustable Column Forms:

Wall Forms:

Untitled design (9).png

From 150x150mm to 600x600mm, the adjustable rectangular/square columns can be in 55 combinations to fit 55-size columns. Standard Panel size is 750mm high.

Advantages:

1

Modular Design

All in a standard size, which can be combined into various sizes to fit the different projects.

4

Reusable

More than 100 times reusable

2

Lightweight

5

Standard Size

Max size formwork weight in 10kgs (1200*600mm).

3

Easy Installation

All of the elements are in modular design in a standard size, particularly for the formwork panels, all are in the standard size, like 1200x600mm, 300x600mm, 250x600mm, 200x600mm, 150x600mm, 100x600mm which can be combined into the various size to fit each construction site.

Only hands job, with no need for a crane.

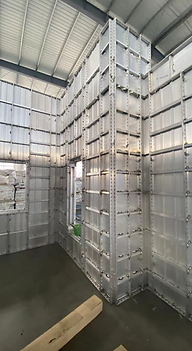

Alumono Formwork Monolithic Formwork Solutions

ALUMONO FORMWORK MONOLITHIC FORMWORK SOLUTIONS

Innovative solution for undertaking mass housing projects capable of fast-rate construction and delivering good quality structures in a cost-effective manner.



The AluMono Formwork system is designed to be tailored for cast-in-place column, wall, staircase, beam, and slab integrated forming and shoring systems. It is designed to accommodate any size and shape of structural elements.



It's a versatile solution for monolithic or two-stage wall, beam, slab, and staircase casting.



The panels are tied together using reusable, pins, wedges and reusable / consumable flat ties to ensure a good and flat surface finish.



The resulting smooth concrete surface finish eliminates the need for costly plastering after stripping.


EXTERIOR CORNER


INTERIOR PANEL

INTERIOR CORNER

SPECIFICATIONS


Formwork Basic Information

Untitled design (8).png

  1. Panel material: Aluminum alloy 6061-T6.

  2. Panel thickness 4mm.

  3. Panel frame thickness 8mm.

  4. Height of panel edge 65mm.

  5. Panel surface with a protective coating.

  6. Average weight 23-25kg/sq.m.

  7. Slab Panel loading capacity 60KN/sq.m.

  8. Can make monolithic casting for wall, beam, slab, and stair.

  9. Early Stripping application to improve construction efficiency.

  10. Sizes use metric dimension millimeter with modulus 50mm.

  11. Wall panel maximum lateral pressure 40KN/sq.m.

Why Alumono Formwork System?

  • Total formwork system to completely form concrete structures

  • Customized design to suit project requirements

  • Easy to assemble with built-in safety features

  • Cost-effective for repetitive mass construction

  • Incomparable construction speed

  • Lightweight at 25kg/m2, easy to handle

  • Panels can be reused over 300 times

  • Erected with minimal need for skilled labor

  • Smooth quality finish

  • Low wastage​

  • Easy to handle

  • Aluminum does not rust like steel; therefore, the Aluminium formwork can be reused hundreds of times. Formwork is made with an Aluminum alloy, which has high tensile strength and is also very hard

  • Savings on overhead expenses due to speedy construction

  • It doesn’t require timber or plywood for construction activities, so it saves the environment

  • Simultaneous casting of walls and slabs

  • Less debris generation

  • Higher scrap value


STRIP TO FINISH

MONOLITHIC POURING

LIGHT & HANDY

Litestrong Column and Wall Form System

LITESTRONG COLUMN & WALL FORM SYSTEM

The LITESTRONG Steel Frame Formwork System is a versatile and robust wall and column formwork system that is also easy to erect and dismantle. It covers a wide range of applications, resulting in high utilization. The framed formwork is made up of hollow, closed steel sections, making it rigid, and uses film-faced plywood or plastic board form face.



The LITESTRONG Column Form can be erected in less than 20 mins. for a 4-panels column form, making it 70% less labor-cost than waler-type column forms. The column form panels can accommodate 50mm increments of adjustment in column size.


LARGE COLUMN FORM ASSEMBLY


LESS THAN

20 MINS

ASSEMBLY

SMALL COLUMN FORM ASSEMBLY

Wall forms assembly.png

WALL FORMS ASSEMBLY

Advantages:

LIGHT TO CARRY.png

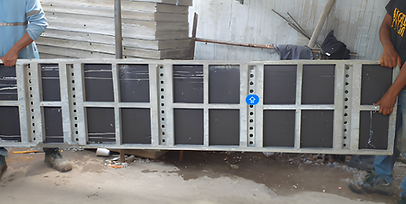

LIGHT TO CARRY

  • Flexible, easy, and quick assembly significantly reduces labor costs and time by up to 60%.

  • The steel framing is made up of a tubular structural section which has good stiffness and ductility, not easy to deform resulting in high utilization.

  • Hot-dip galvanizing anti-corrosion technology extends service life with lesser maintenance and improves safety and durability.

  • The 12mm thick Form face is replaceable to allow the renewal of smooth surface finishes regularly.

Accessories:


ACCESS BRACKET W/ BUILT-IN HANDRAIL CONNECTOR

TURNBUCKLE

T-BOLT & FLANGE NUT CONNECTION

ALIGNMENT CONNECTOR FOR ADJACENT PANELS
